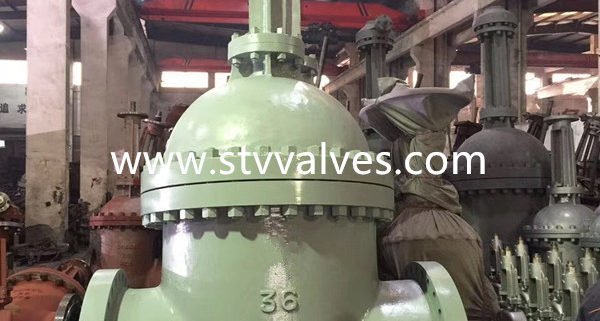

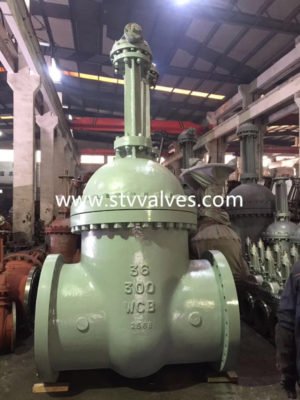

Big Size Cast Steel Gate Valve

We have supplied Big Size Cast Steel Gate Valve,150Lb , DN800, with WCB Body and Gate, rising stem. designed for industrial applications; boiler plants and rugged environments where a more durable valve is required. Cast Steel gate valves are used as efficient shut-off valves with flow in either direction for water, saturated steam, air, gas and oil.

Technical Specifications:

1. Design & Manufacture standard: API 600, API 6D

2. Pressure & Temperature standard: ASME B16.34

3. Face to face dimension standard: ASME B16.10

4. Flange standard: ASME B16.5, ASME B16.47

5. Test & Inspect: API 598

Product Features:

1. Flexible wedge gate.

2. Bolted bonnet.

3. Material: A216 WCB.

4. Suitable Temperature: -29℃~425℃(Different temperature choose different materials)

5. Suitable Medium: Water, Oil and natural gas and other causticity medium (Different raw material for different medium)

DESCRIPTION QTY UNIT/USD TOTAL/USD
Carbon Steel body ASTM A216 WCB, disc seat of Excelloy 13 %, crohme stem (trim F6), ANSI A-16,5 flanges Ø 32¨-150 psi. 4 6280 25120
Gate Valve free Stem, Carbon Steel body ASTM A216 WCB, disc seat of Excelloy 13 %, crohme stem (trim F6), ANSI A-16,5 flanges Ø 36¨-150 psi. 5 10000 50000
