API Lug 609 buttefly valves
We just delivered many butterfly Valve to one of our major customers in the Singpore.
All valves are painted, and their min thickness is 150 microns.
Description:

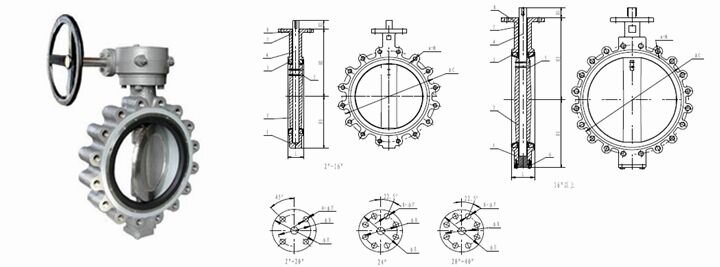

API 609 LUG BUTTERFLY VALVE, PTFE Seat
Design and Manufacture:API 609
Face to Face Dimension:API609,ISO5752,ASME B16.10
Flange Connection Dimension:ASME B16.5,ASME B16.47
Test and Inspection:API 598
Pressure Temperature Rating:API 609,ASME B16.34
Product Range
Body material:Cast Steel,Stainless Steel,Monel
Nominal diameter:2″~120″(DN50~DN3000)
End Connection: Double Flange,Wafer,Lug,etc
Pressure range: Class150 ~ 600(PN16~PN100)
Working temperature:-46℃ ~ +550℃
Material:
Body: WCB
Disc:WCB
Stem: F6
Seat: PTFE
Size:DN150
Stud/Nut:A193 B7/ A194 2H
